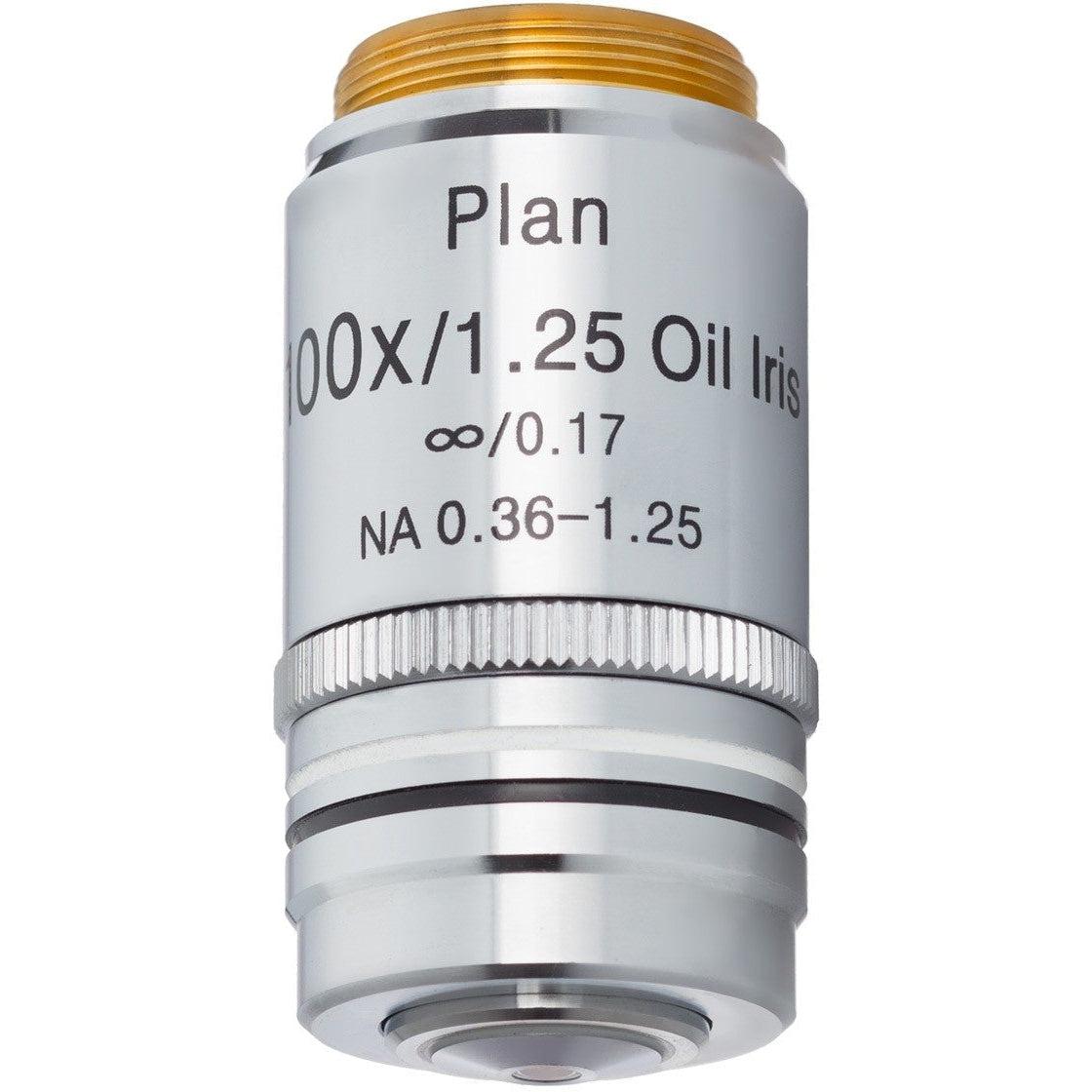

This is a 100X objective lens with a variable-NA iris for applications such as dark-field microscopy. Standard bright-field objective lenses present low contrast due to their high numerical apertures. This lens' built-in iris provides control over the aperture, varying between 0.36 and 1.25. This allows for the intensity of the dark-field contrast to be easily adjusted.
Designed for infinity-corrected microscopes with RMS thread, this lens features both chromatic and spherical corrections, providing sharp, focused images. It is designed to be used with immersion oil, and has a spring nosecone to prevent damage to the lens or specimen.
Compatibility | |
Optical System | Infinite |
Reference Focal Length | 180mm |
Mounting Thread | RMS 20.32mm |
Parfocal Distance | 45mm |
Lens Specifications | |
Magnification | 100X |
Numerical Aperture | 0.36 to 1.25 |
Corrections | Plan-achromatic |
Cover-glass Thickness | 0.17mm |
Nosecone | Spring |
Immersion Medium | Oil |
